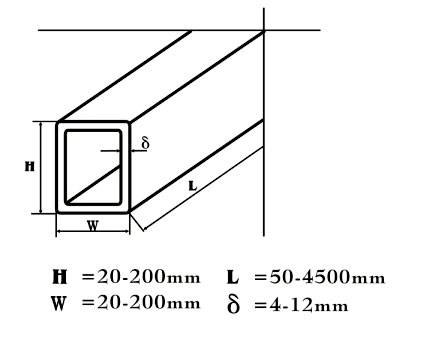

截面尺寸
Size of Section（mm）
|
壁厚
Wall Thichness（mm）
|
集中力
Concentrated Loading（kg·m/L）
|
均布力
Uniformly Distributed Loading （kg·m/L）
|
|
Bside
|
Hside
|
W Side
|
H Side
|
W Side
|
H Side
|
|
30
|
30
|
5
|
74
|
74
|
147
|
147
|
|
30
|
40
|
5
|
117
|
95
|
235
|
190
|
|
40
|
40
|
6
|
149
|
149
|
298
|
298
|
|
50
|
50
|
6
|
283
|
283
|
567
|
567
|
|
50
|
60
|
6
|
374
|
331
|
748
|
662
|
|
50
|
70
|
6
|
473
|
379
|
946
|
757
|
|
60
|
60
|
7
|
481
|
481
|
962
|
962
|
|
80
|
80
|
7
|
935
|
935
|
1869
|
1869
|
|
100
|
100
|
8
|
1708
|
1708
|
3416
|
3416
|
|
110
|
110
|
10
|
2498
|
2498
|
4997
|
4997
|
泰润反应烧结碳化硅横梁的抗弯强度按250MP计算，取5倍安全系统数，承载力按长度一米求得。若制品长度为L时，承载力可按下式计算：集中力=表中值×1/L，均布力合力=表中值×1/L。此承载力适应温度为1380℃。

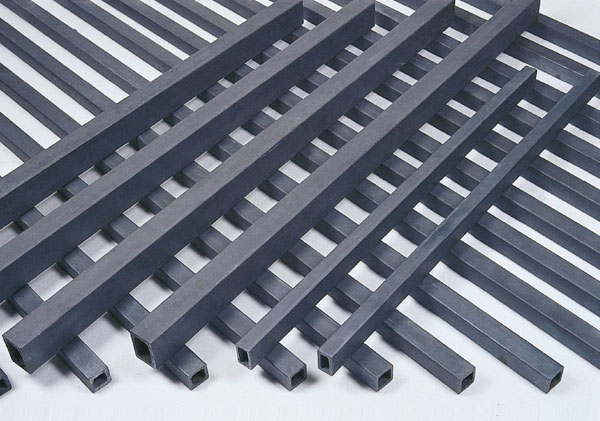

The bending strength of Tairun RBSiC(Sisic) Beams is 250MP,safety coefficient is 5.
Concentrated Loading=the Value in the Table Accordingly×1/L，Uniform Distributed Loading=the Value in the Table Accordingly×1/L, The temperature of 1380 ℃.
